best wood WALL 140 Plaster base board for exterior use

WALL 140 is a pressure-resistant, plasterable wood fibre insulation board for installation on full-surface substrates such as solid wood and masonry in exterior wall areas.

Advantages:

Excellent thermal conductivity value
Good heat protection in summer and optimal thermal insulation in winter
Improves sound insulation: wood-fibre insulation boards are very good sound insulators, the higher the raw density the better the sound-insulating effect
Hydrophobic throughout
Open to diffusion and therefore moisture-regulating
Easy installation - secured by our processing guidelines ETICS
Hardly any waste due to the fact that the wood fibre insulation boards can be used on both sides
Completely recyclable

0.040 [W/mK]

Nominal value of thermal conductivity λ_D according to DIN EN 13171
0.040 [W/mK]

Declared thermal conductivity λ_D according to SIA 279 (Switzerland)
0.042 [W/mK]

Rated value of thermal conductivity λ_B according to DIN 4108-4
140 [kg/m³]

Density

Fields of application

Exterior masonry and solid wood walls
Can be plastered directly

Fields of application according to DIN 4108-10
DEO-ds, WAB-ds, WAP-zh, WZ, WH, WI-zg, WTR

Delivery formats

Design
- Tongue and groove
- Square edge

	Format (mm)
	580 x 1500	580 x 2000	600 x 1250
40
60
80
100
120
140
160
180
200
220
240
Thickness (mm)

Technical data

Denomination of insulation board	WF-EN 13171-T5-DS(70,-)2-CS(10\Y)100-TR20-WS1,0-MU3-AFr75
Standard	EN13171
	ETA-16/0997; ETA-15/0731; aBG Z-33.84-1674; aBG Z-33.84-1675
Density	140 [kg/m³]
Nominal value of thermal conductivity λ_D	0.040 [W/(mK)]
Rated value of thermal conductivity λ_B	0.042 [W/(mK)]
Reaction to fire according to DIN EN 13501-1	E
Construction material class according to DIN 4102-1	B2
Full declaration	Wood fibers, PMDI gluing, paraffin
Production process	Dry process
Compressive stress at 10% compression	≥ 100 [kPa]
Tensile strength perpendicular to the plane of the board	≥ 20 [kPa]
Modulus of elasticity E_(d)	≥ 1,45 [N/mm2]
Water vapor diffusion resistance μ	3
Linear flow resistance	> 75 [kPa·s/m²]
Short time water absorption	< 1.0 [kg/m²]
Specific heat capacity	2100 [J/(kgK)]
Waste code according to AVV	030105, 170201

Quality

For your and our safety, we take great care to ensure a high standard of quality.

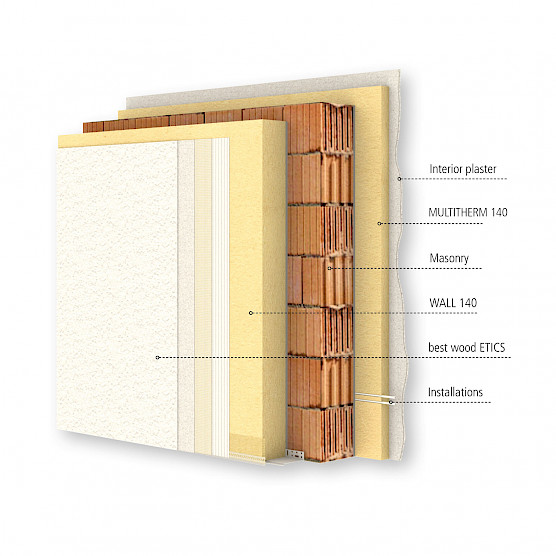

Example solid wood and masonry Click to enlarge

Downloads

Accessories

Here you will find popular accessories for this product.

best wood adhesive and reinforcing mortar (UP)

Adhesive and reinforcing mortar with organic lightweight aggregates for fixing wood fiber insulation boards to mineral substrates.

best wood mineral plaster (MOP)

Mineral plaster white - breathable, water-repellent and moisture-regulating finishing plaster with brilliant surface structure.

best wood Ejotherm STR H insulating plaster screw

Screw for insulation boards with a diameter of 6 mm for flush fastening on wooden substrates. Plate Ø 60 mm. Effective screw-in depth: min. 35 mm.

best wood FDM WALL

Assembly adhesive to fasten reveal boards and seal joints in the wall insulation, when the joint width is about 2–5 mm.

Suitable accessories

Here you will find everything that is right and good for working and processing our insulation products.

Accessoires INSULATION

Reference Mali sports hall Biberach Ecological, functional, aesthetic

A gem of a municipal building: a total of around 1070 m³ of wood and 1,114 m² of best wood WALL wood fibre insulation were installed here in a very short time, packaged in a great design and combining different areas of use.

Location 88400 Biberach an der Riss, Germany
Building type Event buildings, Sports buildings, Municipal / public construction
Building measure New buildings

To the object
