best wood WALL 140 pre-plastered Pre-plastered wood fibre insulation board
The pre-rendered WALL 140 is a pressure-resistant wood fibre insulation board pre-rendered with adhesive and reinforcing mortar (UP) for installation on full-surface and load-bearing solid wood substrates. It should be fixed with the help of broad back staples.
Advantages:
- Part of the under plaster layer of approx. 4 mm as groove structure already applied in the factory
- conforms to approval in best wood ETICS
- can be exposed to weather for up to 5 months
- Time saving: no tooth filling on the construction site, no drying time required
- saves set-up and working time on the construction site
- high-quality: uniform layer thickness, due to machine application
- Reinforcement fabric with security in the right place
- easy to cut and install
- prevents lignin from bleeding through
- excellent thermal conductivity value
- good heat protection in summer and optimal thermal insulation in winter
- improves sound insulation: wood fibre insulation boards are very good sound insulators, the higher the raw density the better the sound insulating effect
- hydrophobic throughout
- open to diffusion and therefore moisture regulating
- easy installation - secured by our processing guidelines ETICS
-
0.040 [W/mK]
Nominal value of thermal conductivity λD according to DIN EN 13171
-
0.040 [W/mK]
Declared thermal conductivity λD according to SIA 279 (Switzerland)
-
0.042 [W/mK]
Rated value of thermal conductivity λB according to DIN 4108-4
-
140 [kg/m³]
Density
Fields of application
- Interior and exterior masonry and solid wood walls
- Can be plastered directly
Fields of application according to DIN 4108-10
DEO-ds, WAB-ds, WAP-zh, WZ, WH, WI-zg, WTR
Delivery formats
-
Design
- Tongue and groove
| Format (mm) | ||
| 580 x 1500 | 580 x 2000 | |
| 60 | ||
| 80 | ||
| 100 | ||
| 120 | ||
| 140 | ||
| 160 | ||
| Thickness (mm) | ||
Technical data
| Denomination of insulation board | WF-EN 13171-T5-DS(70,-)2-CS(10\Y)100-TR20-WS1,0-MU3-AFr75 |
| Standard | EN13171 |
| ETA-16/0997; ETA-15/0731; aBG Z-33.84-1674; aBG Z-33.84-1675 | |
| Density | 140 [kg/m³] |
| Nominal value of thermal conductivity λD | 0.040 [W/(mK)] |
| Rated value of thermal conductivity λB | 0.042 [W/(mK)] |
| Reaction to fire according to DIN EN 13501-1 | E |
| Construction material class according to DIN 4102-1 | B2 |
| Full declaration | Wood fibers, PMDI gluing, paraffin |
| Production process | Dry process |
| Compressive stress at 10% compression | ≥ 100 [kPa] |
| Tensile strength perpendicular to the plane of the board | ≥ 20 [kPa] |
| Modulus of elasticity E(d) | ≥ 1,45 [N/mm2] |
| Water vapor diffusion resistance μ | 3 |
| Linear flow resistance | > 75 [kPa·s/m²] |
| Short time water absorption | < 1.0 [kg/m²] |
| Specific heat capacity | 2100 [J/(kgK)] |
| Waste code according to AVV | 030105, 170201 |
Quality
For your and our safety, we take great care to ensure a high standard of quality.
Simple cutting and installation

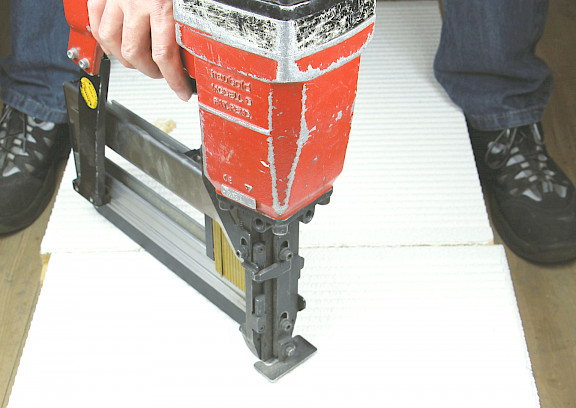

The pre-plastered WALL 140/180 boards are cut to size using cutting equipment such as hand-held circular saws and sliding table saws with hard-metal blades.The fixation of the best wood WALL 140/180 is carried out using of broad back staples or alternatively with the screw-in anchor H35.
Economy of time
- One working step on the building site can be omitted, since there is no further need to put the notched plaster onto the board
- No drying time since the board already comes pre-plastered
- Saves set-up and working time on the building site
- An outdoor exposure of up to 5 months is possible
High Quality
- Thanks to the machinery coating, the whole layer has the same thickness
- This assures that the reinforcement fabric is fixed at the right place in the second step
- Avoids the penetration of lignin
